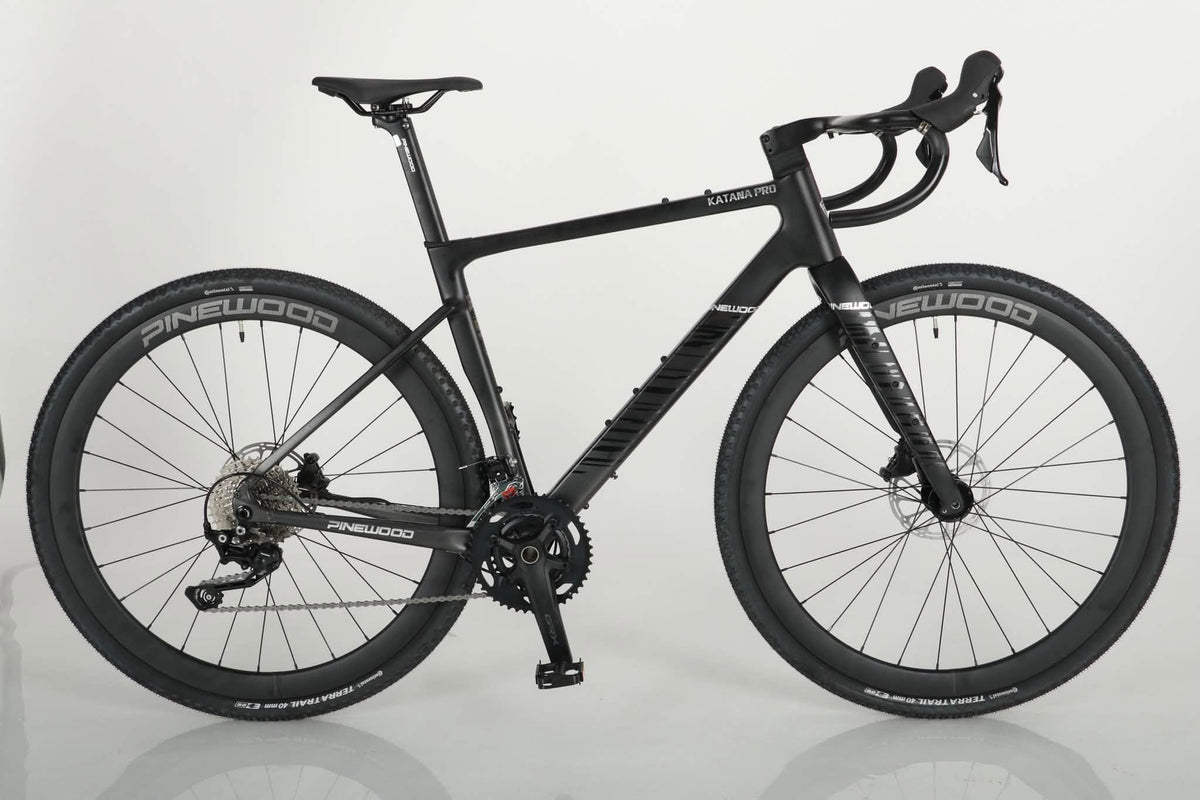

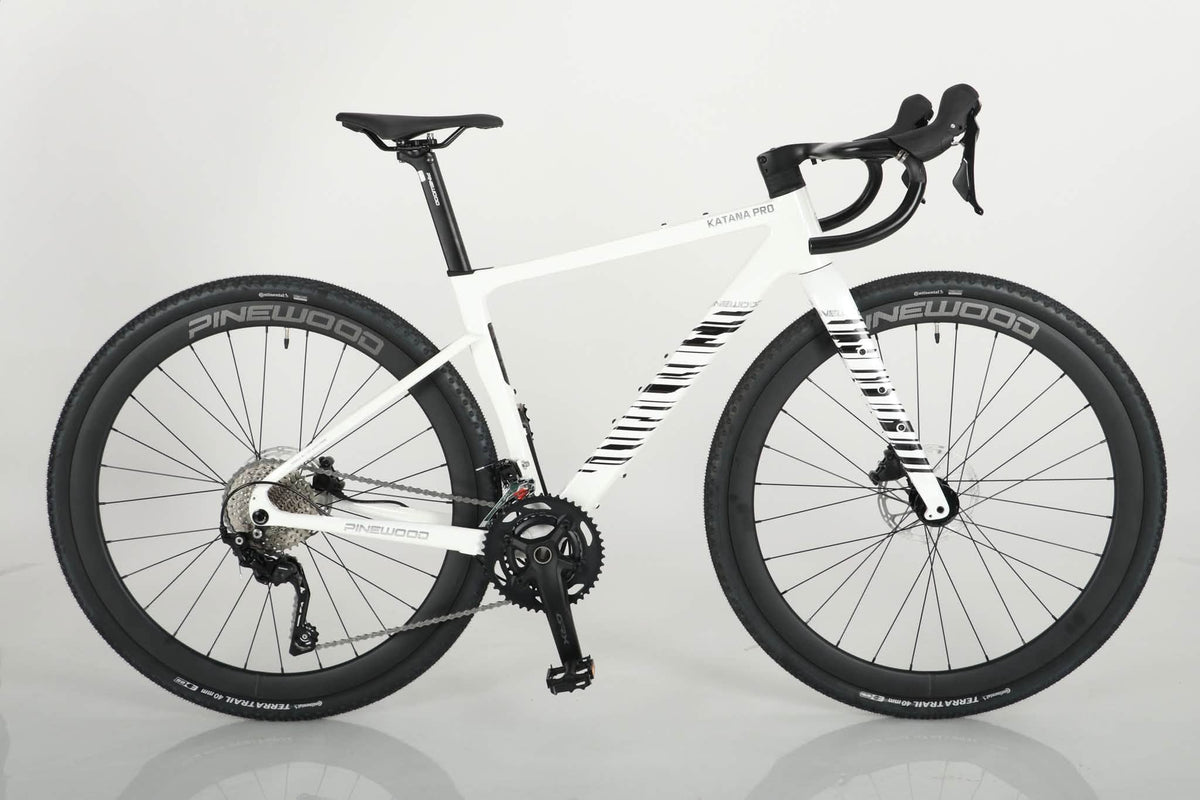

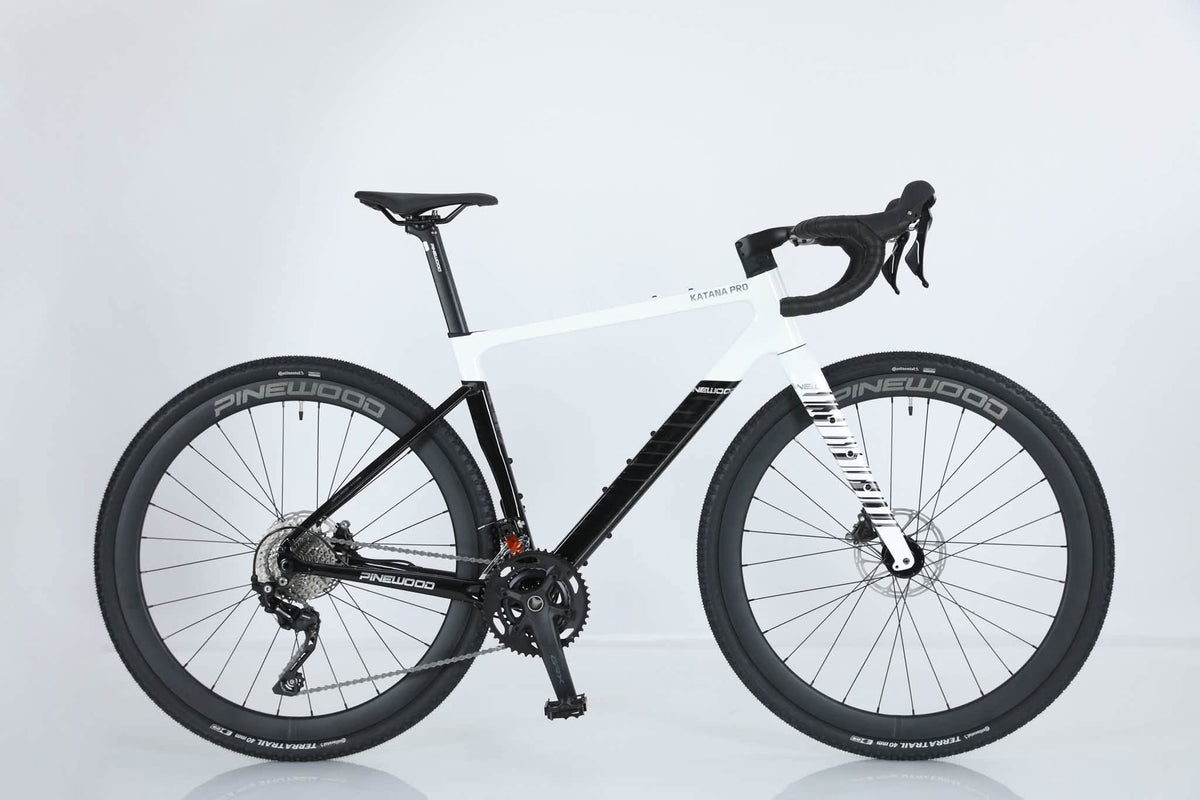

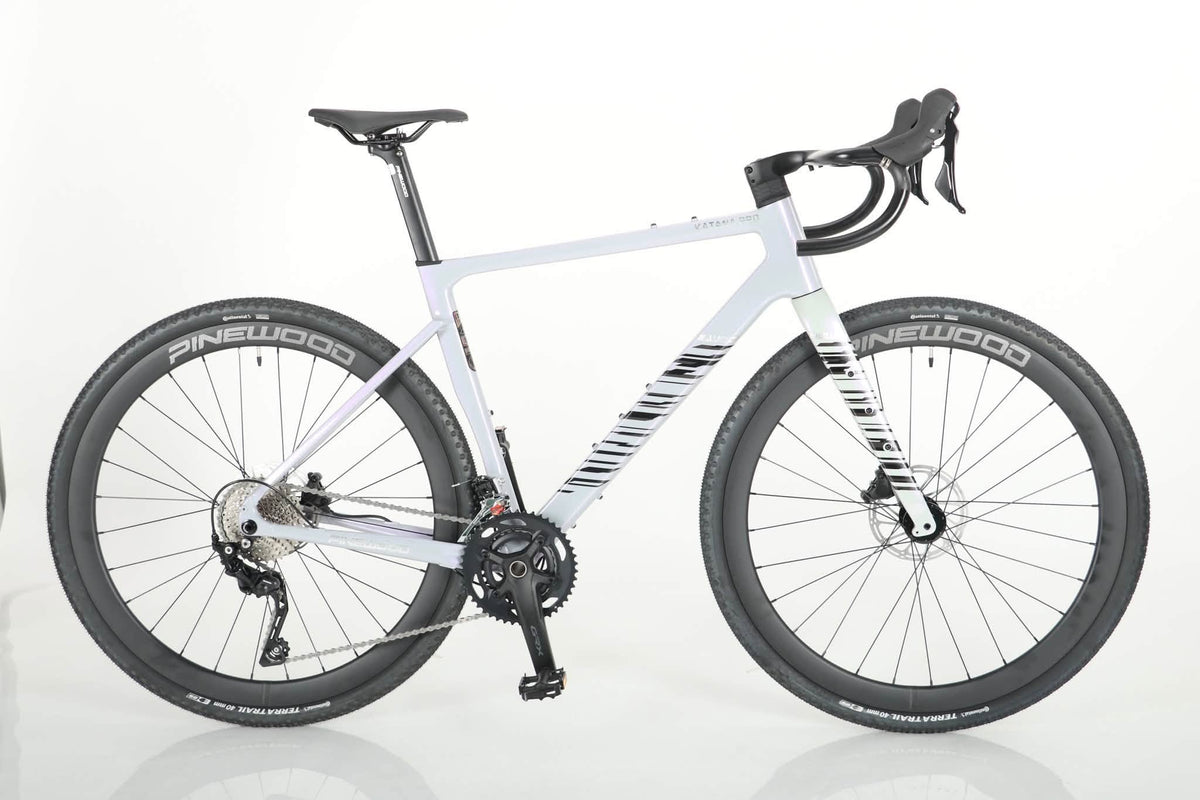

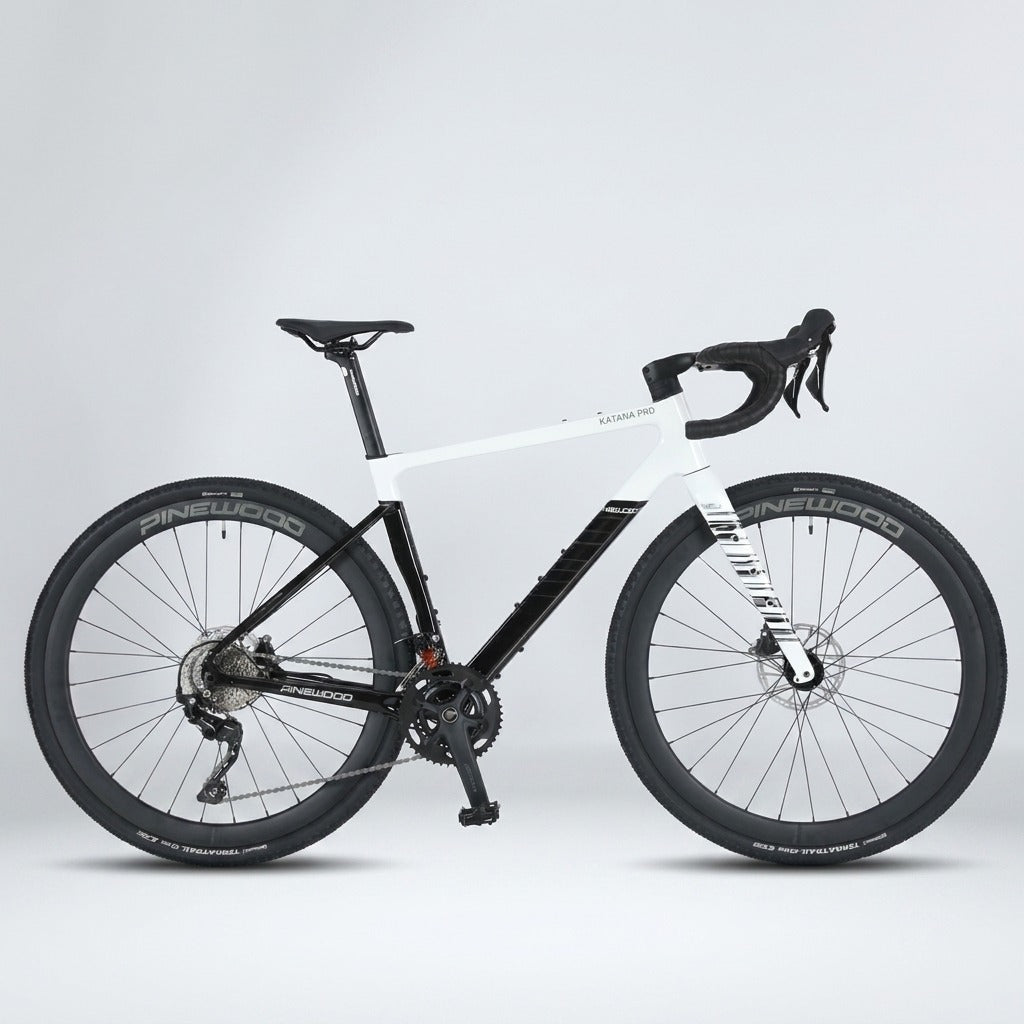

Pinewood Katana PRO UDH Full GRX 2026 Gravel Bike 700c
Out of stock
The New upgraded GRX Chainwheel and UDH Hanger
Full Inner Cable Disc
Gravel Can Also Be Aerodynamic
Speed and crossing in one
Katana's Gravel 1gen is very popular with fans, and our 2gen is fully evolved GRX Hydraulic And Aero Frame Geometry/Tubes
Specs
FRAME 12*142mm UDH
Aluminium 6061 T6 lite, Full Internal Cable Routing, Triple Butted bearing 52/52mm Sealed Bearing
Fork 12*100mm
Full carbon, Toraycat T800 flat disc mount, thru axle
DRIVETRAIN
Crankset
Shimano GRX FC-Rx600-10 170mm 30T/46T alloy charing, alloy crank HG 10Speed
Chain
PYC 10S
Rear Cogs
SUNSHINE MTB-CS-HR10 11-36T cassette sprocket
Front Derailleur
Shimano FD-GRX400
Rear Derailleur
Shimano RD-GRX400
Shifters
Shimano ST-GRX400 dual control lever Hydraulic
WHEELS
Front Hub
SAGMIT Thru hub Disc, 2 bearings, Aluminium,6-Bolt, A7005 12*100 thru axle
Rear Hub
SAGMIT Thru hub Disc, 4 bearings, Aluminium,6-Bolt, 6 Pawls 120POE, A7005 12*142 thru axle
Rims
PINEWOOD DX40 double wall,Aluminium disc, 40mm
Tires
Continental TERRA TRAIL 40mm 700x40C
BRAKES
Brake Levers
Shimano ST-GRX400 dual control lever
Brakes
Shimano ST-GRX400 Hydra disc, HELUX rotor 160/160mm
COMPONENTS
Handlebar
Sagmit Integrated alloy 1-PC Internal cable routing, butted 400/420mm Aero, Ext 90mm
Seatpost
PINEWOOD,Aluminium,D-shape 300mm
Saddle
Gravel saddle
Weight:11.5kg+-
Size:45/47/49/51
Tire Maximum:48c
Made In Taiwan
